Module: ETCD

ETCD is a distributed, reliable key-value store for the most critical data of a distributed system

Configuration | Administration | Playbook | Dashboard | Parameter

Pigsty use etcd as DCS: Distributed configuration storage (or distributed consensus service). Which is critical to PostgreSQL High-Availability & Auto-Failover.

You have to install ETCD module before any PGSQL modules, since patroni & vip-manager will rely on etcd to work. Unless you are using an external etcd cluster.

You don’t need NODE module to install ETCD, but it requires a valid CA on your local files/pki/ca. Check ETCD Administration SOP for more details.

Configuration

You have to define an etcd cluster before deploying it. There some parameters about etcd.

It is recommending to have at least 3 instances for a serious production environment.

Single Node

Define a group etcd in the inventory, It will create a singleton etcd instance.

# etcd cluster for ha postgres
etcd: { hosts: { 10.10.10.10: { etcd_seq: 1 } }, vars: { etcd_cluster: etcd } }

This is good enough for development, testing & demonstration, but not recommended in serious production environment.

Three Nodes

You can define etcd cluster with multiple nodes.

etcd: # dcs service for postgres/patroni ha consensus
  hosts:  # 1 node for testing, 3 or 5 for production
    10.10.10.10: { etcd_seq: 1 }  # etcd_seq required
    10.10.10.11: { etcd_seq: 2 }  # assign from 1 ~ n
    10.10.10.12: { etcd_seq: 3 }  # odd number please
  vars: # cluster level parameter override roles/etcd
    etcd_cluster: etcd  # mark etcd cluster name etcd
    etcd_safeguard: false # safeguard against purging
    etcd_clean: true # purge etcd during init process

You can use more nodes for production environment, but 3 or 5 nodes are recommended. Remember to use odd number for cluster size.

Administration

Here are some useful administration tasks for etcd:

• Create Cluster
• Destroy Cluster
• CLI Environment
• Reload Config
• Add Member
• Remove Member

Create Cluster

If etcd_safeguard is true, or etcd_clean is false, the playbook will abort if any running etcd instance exists to prevent purge etcd by accident.

etcd:
  hosts:
    10.10.10.10: { etcd_seq: 1 }
    10.10.10.11: { etcd_seq: 2 }
    10.10.10.12: { etcd_seq: 3 }
  vars: { etcd_cluster: etcd }

./etcd.yml   # init etcd module on group 'etcd'

Destroy Cluster

To destroy an etcd cluster, just use the etcd_clean subtask of etcd.yml, do think before you type.

./etcd.yml -t etcd_clean  # remove entire cluster, honor the etcd_safeguard
./etcd.yml -t etcd_purge  # purge with brutal force, omit the etcd_safeguard

CLI Environment

Here’s an example of client environment config.

Pigsty use etcd v3 API by default.

alias e="etcdctl"
alias em="etcdctl member"
export ETCDCTL_API=3
export ETCDCTL_ENDPOINTS=https://10.10.10.10:2379
export ETCDCTL_CACERT=/etc/pki/ca.crt
export ETCDCTL_CERT=/etc/etcd/server.crt
export ETCDCTL_KEY=/etc/etcd/server.key

CRUD

You can do CRUD with following commands.

e put a 10 ; e get a; e del a ; # V3 API

Reload Config

If etcd cluster membership changes, we need to refresh etcd endpoints references:

• config file of existing etcd members
• etcdctl client environment variables
• patroni dcs endpoint config
• vip-manager dcs endpoint config

To refresh etcd config file /etc/etcd/etcd.conf on existing members:

./etcd.yml -t etcd_conf                           # refresh /etc/etcd/etcd.conf with latest status
ansible etcd -f 1 -b -a 'systemctl restart etcd'  # optional: restart etcd

To refresh etcdctl client environment variables

$ ./etcd.yml -t etcd_env                          # refresh /etc/profile.d/etcdctl.sh

To update etcd endpoints reference on patroni:

./pgsql.yml -t pg_conf                            # regenerate patroni config
ansible all -f 1 -b -a 'systemctl reload patroni' # reload patroni config

To update etcd endpoints reference on vip-manager, (optional, if you are using a L2 vip)

./pgsql.yml -t pg_vip_config                           # regenerate vip-manager config
ansible all -f 1 -b -a 'systemctl restart vip-manager' # restart vip-manager to use new config

Add Member

ETCD Reference: Add a member

You can add new members to existing etcd cluster in 5 steps:

1. issue etcdctl member add command to tell existing cluster that a new member is coming (use learner mode)
2. update inventory group etcd with new instance
3. init the new member with etcd_init=existing, to join the existing cluster rather than create a new one (VERY IMPORTANT)
4. promote the new member from leaner to follower
5. update etcd endpoints reference with reload-config

Short Version

etcdctl member add <etcd-?> --learner=true --peer-urls=https://<new_ins_ip>:2380
./etcd.yml -l <new_ins_ip> -e etcd_init=existing
etcdctl member promote <new_ins_server_id>

etcd:
  hosts:
    10.10.10.10: { etcd_seq: 1 } # <--- this is the existing instance
    10.10.10.11: { etcd_seq: 2 } # <--- add this new member definition to inventory
  vars: { etcd_cluster: etcd }

# tell the existing cluster that a new member etcd-2 is coming
$ etcdctl member add etcd-2 --learner=true --peer-urls=https://10.10.10.11:2380
Member 33631ba6ced84cf8 added to cluster 6646fbcf5debc68f

ETCD_NAME="etcd-2"
ETCD_INITIAL_CLUSTER="etcd-2=https://10.10.10.11:2380,etcd-1=https://10.10.10.10:2380"
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://10.10.10.11:2380"
ETCD_INITIAL_CLUSTER_STATE="existing"

33631ba6ced84cf8, unstarted, , https://10.10.10.11:2380, , true
429ee12c7fbab5c1, started, etcd-1, https://10.10.10.10:2380, https://10.10.10.10:2379, false

$ ./etcd.yml -l 10.10.10.11 -e etcd_init=existing    # etcd_init=existing must be set
...
33631ba6ced84cf8, started, etcd-2, https://10.10.10.11:2380, https://10.10.10.11:2379, true
429ee12c7fbab5c1, started, etcd-1, https://10.10.10.10:2380, https://10.10.10.10:2379, false

$ etcdctl member promote 33631ba6ced84cf8   # promote the new learner
Member 33631ba6ced84cf8 promoted in cluster 6646fbcf5debc68f

$ em list                # check again, the new member is started
33631ba6ced84cf8, started, etcd-2, https://10.10.10.11:2380, https://10.10.10.11:2379, false
429ee12c7fbab5c1, started, etcd-1, https://10.10.10.10:2380, https://10.10.10.10:2379, fals

Remove Member

To remove a member from existing etcd cluster, it usually takes 3 steps:

1. remove/uncomment it from inventory and reload config
2. remove it with etcdctl member remove <server_id> command and kick it out of the cluster
3. temporarily add it back to inventory and purge that instance, then remove it from inventory permanently

etcd:
  hosts:
    10.10.10.10: { etcd_seq: 1 }
    10.10.10.11: { etcd_seq: 2 }
    10.10.10.12: { etcd_seq: 3 }   # <---- comment this line, then reload-config
  vars: { etcd_cluster: etcd }

$ etcdctl member list
429ee12c7fbab5c1, started, etcd-1, https://10.10.10.10:2380, https://10.10.10.10:2379, false
33631ba6ced84cf8, started, etcd-2, https://10.10.10.11:2380, https://10.10.10.11:2379, false
93fcf23b220473fb, started, etcd-3, https://10.10.10.12:2380, https://10.10.10.12:2379, false  # <--- remove this

$ etcdctl member remove 93fcf23b220473fb  # kick it from cluster
Member 93fcf23b220473fb removed from cluster 6646fbcf5debc68f

./etcd.yml -t etcd_purge -l 10.10.10.12   # purge it (the member is in inventory again)

Playbook

There’s a built-in playbook: etcd.yml for installing etcd cluster. But you have to define it first.

./etcd.yml    # install etcd cluster on group 'etcd'

Here are available sub tasks:

• etcd_assert : generate etcd identity
• etcd_install : install etcd rpm packages
• etcd_clean : cleanup existing etcd
  • etcd_check : check etcd instance is running
  • etcd_purge : remove running etcd instance & data
• etcd_dir : create etcd data & conf dir
• etcd_config : generate etcd config
  • etcd_conf : generate etcd main config
  • etcd_cert : generate etcd ssl cert
• etcd_launch : launch etcd service
• etcd_register : register etcd to prometheus

If etcd_safeguard is true, or etcd_clean is false, the playbook will abort if any running etcd instance exists to prevent purge etcd by accident.

Dashboard

There is one dashboard for ETCD module:

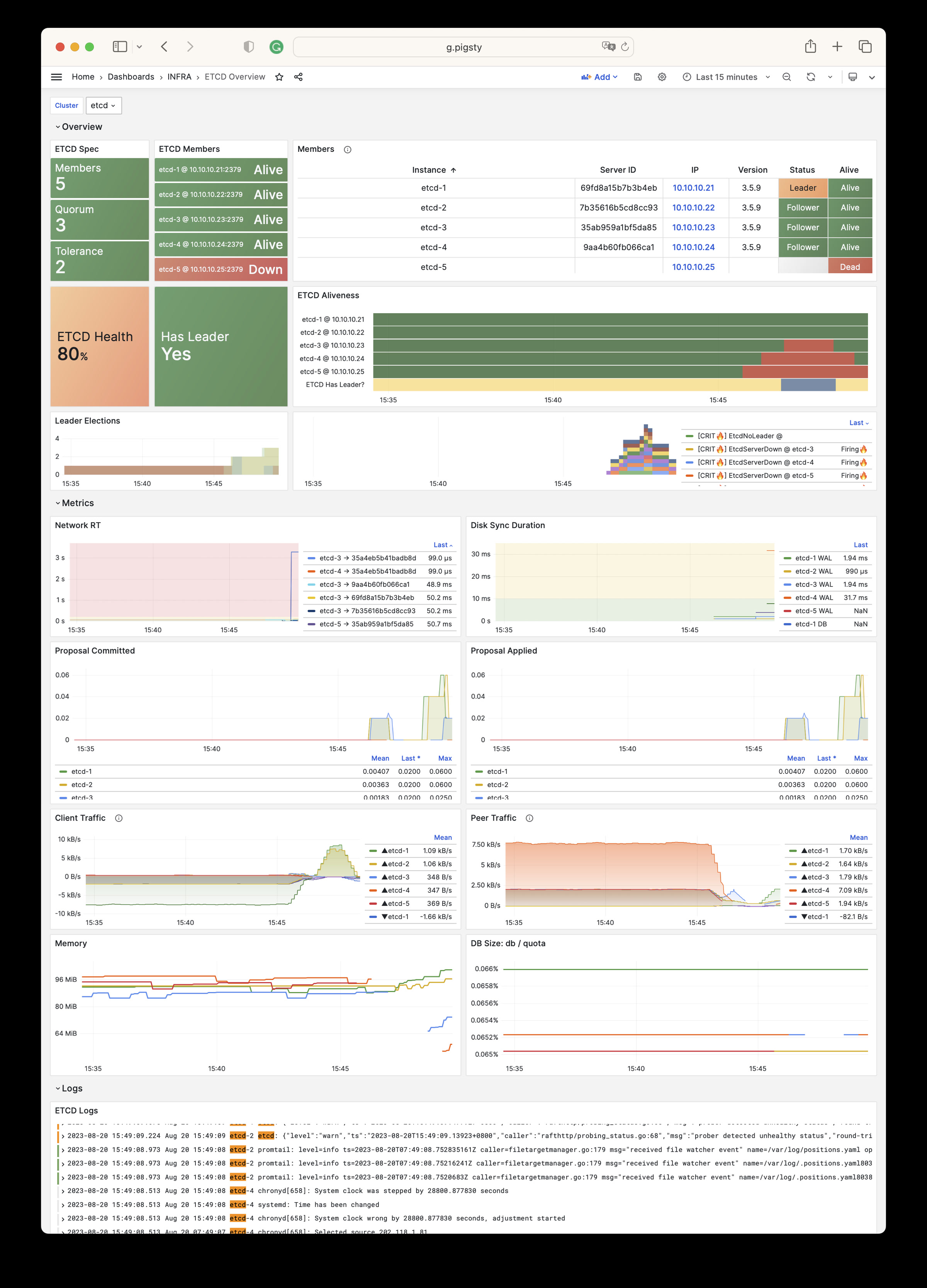

ETCD Overview: Overview of the ETCD cluster

Parameter

There are 10 parameters about ETCD module.
